Valves

We are stockist of a variety of valves and specialised valves. Below are some of the valves that are carried by ourselves or our principle.

• Taylor Steam Valves
• VOS Valves
• Insamcor Knife gate Valves
• Vent-O- Mat Air release valves
• SKG knife gate valves
• Stainless Steel Level Control Valves

• Checkrite Non return Valves CI/CS/SS
• Butterfly Valves
• Ball valves Class 150 ad class 300
• Stainless Steel Needle valves
• Stainless steel ball valves
• Saunders Diaphragm valves

• Full bore fire safe ball valve to API 607
• Chrome plated Brass Ball Valves
• Brass Gate Valves
• Control Valves
• Stainless Steel Check Valves
• Vent O Mat Air Release Valves

Valve Range

Chrome plated Brass Body and Ball Valve

DESCRIPTION
FIG MSV-CP, PN30, Chrome plated Brass Body and Ball, PTFE Seats and seals, full bore, flat bar lever, Screwed BSP female .
Sizes 8mm to 100mm

FEATURES
• Brass ball
• Brass according to DIN 17660
• The thread ends female according to ISO 228/1

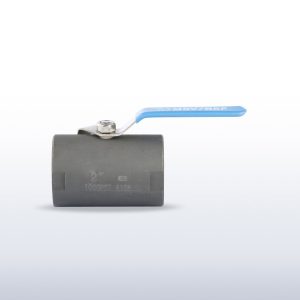

Stainless steel Body and Ball Valve

DESCRIPTION
Fig 2017, PN69, 316 Stainless steel Body and Ball, One Piece Reduced Bore, 15 % Glass filled PTFE Seat and seal, lever operated with locking device, threaded BSP female.
Sizes 8mm to 100mm.

FEATURES
• The thread ends conform to BS21
• Investment casting
• Blow-out proof stem
• PTFE Seat
• Lockable Lever

DESCRIPTION
Fig 2013NM, PN69, 316 Stainless steel, 15 % Glass filled PTFE Seats and seals, Full bore, Lever operated with locking device, Screwed BSP Female, with Optional ISO Mounting Pad.
Sizes 8mm to 100mm

FEATURES
• The thread ends conform to BS21
• Investment Casting
• Blow-out Proof Stem
• PTFE Seat
• ISO5211 Mounting Pad Optional

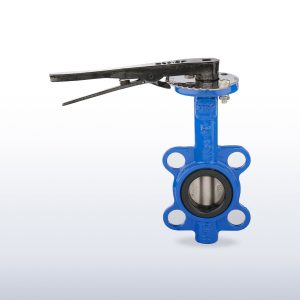

MSV Wafer type Butterfly valve

DESCRIPTION
MSV Wafer type Butterfly valve, Cast Iron Epoxy coated Body,  316 Stainless steel Disc, EPDM Liner, PN10, Trigger lever or Gearbox operated, Lugged top and Bottom.
Sizes:  50mm to 600mm
Larger sizes P.O.R.

FEATURES
• Fluid application: Water . Seawater . Oil . Powder . Gas . Etc.
• Lever Operated
• Gearbox Operated (option)
• Pinless Disc
• Integral Disc Drive
• Double D shaft from 50mm to 300mm

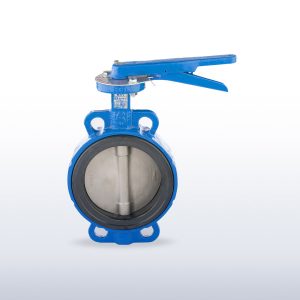

MSV Model X-PN16 Wafer type butterfly valve

DESCRIPTION
MSV Model X-PN16 Wafer type butterfly valve, Epoxy coated cast iron body, 316 stainless steel disc, EPDM liner, PN16, Lever operated up to 300mm, Gearbox operated available from 150mm and above.

FEATURES
PN16
• Lockable Lever
• Trigger Lever
• EPDM Liner
• Pinless

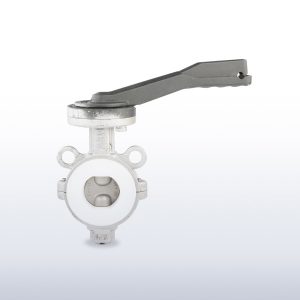

MSV Model X-PN10SS Wafer type Butterfly valve

DESCRIPTION
MSV Model X-PN10SS Wafer type Butterfly valve, 316 stainless steel body and disc, PTFE Liner, PN10, Lever operated up to 150mm, Gearbox operated from 200mm and above

FEATURES
• 316 Stainless steel body and disc
• PTFE liner
• Gearbox operated from 200mm
• Integral Type
• PN10 rated

Resilient Seal gate valves

DESCRIPTION
Resilient Seal gate valves to SABS 664, Class 16, Fusion Bonded Epoxy powder coated Cast Iron Body, Stainless steel Non Rising Spindle, Hand wheel operated, Clockwise Closing, flanges drilled to SABS 1123 Table 1600

FEATURES
• Flanged ends
• Valve usable in any position
• Low maintenance for minimum running costs

Cast Iron Body Diaphragm valve

DESCRIPTION
Cast Iron Body Diaphragm valve with a vast range of lining and grade of diaphragms available to suit your individual application. Sizes:  15mm to 350mm

FEATURES
Flanged ends and Screwed Ends available
Valve usable in any position
Low maintenance for minimum running costs
Both on Pressure and Vacuum valves operate and close 100 % leak-tight
Valve can be used for Regulating and Isolating
Excellent flow Regulating characteristics

Stainless steel Y-Type Strainer

DESCRIPTION
MSV Model X-PN10SS Wafer type Butterfly valve, 316 stainless steel body and disc, PTFE Liner, PN10, Lever operated up to 150mm, Gearbox operated from 200mm and above

FEATURES
• 316 Stainless steel body and disc
• PTFE liner
• Gearbox operated from 200mm
• Integral Type
• PN10 rated

LEVELDEX Series LX Level Control valve

DESCRIPTION
LEVELDEX Series LX Level Control valve, SG Iron body, Stainless steel Pilot and Float road, Direct Pilot and Filter Strainer, ABS Plastic Ball float, PN16 Static.
Model LDF complete with Elbow
Model LXF Without Elbow

FEATURES
• LDF1601 :  0 – 1 Bar  to atmosphere without Cavitating
• LDF1605 :  1 – 5 Bar to atmosphere without Cavitating
• Can be supplied with a Direct Pilot or a Remote Pilot

Equilibrium Float Valve

DESCRIPTION
Vosa Fig. 7354 Equilibrium Float Valve – Cast Iron Body, Flanged Ends.  Gunmetal Trim, Glassfibre-covered polyurethane Float.  Ends:  Flanged Ends
Sizes:  50mm to 200mm

FEATURES
Maximum Static Pressure – 1000 kpa
Maximum Flow Rate at +/- 4m hd.
Flanged Ends
Heavy duty design

Venice brass gate valves

DESCRIPTION
Venice brass gate valves full bore 15mm to 100mm sizes available.

VENT O MAT Series RBX Anti-Shock Air Release and Vacuum break valve

DESCRIPTION
VENT O MAT Series RBX “Anti-Shock” Air Release & Vacuum break valve, Stainless steel Body and Tie Rods, Epoxy coated Ductile Iron ends either Flanged or Threaded

FEATURES
• Integral Surge Alleviation Mechanism
• Large Orifice
• Full bore
• Compact Single chamber
• Solid Cylindrical High Density Polyethylene Control floats
• Un-interrupted High Volume Air Intake / Discharge
• End connections in Threaded BSP / Flanged PN16/PN25/PN40

VENT O MAT Series RGX Anti-Surge Sewage Air release and Vacuum Break valve

DESCRIPTION
VENT O MAT Series RGX “Anti-Surge” Sewage Air release and Vacuum Break valve, Stainless steel body, Solid Cylindrical High Density Polyethylene Large Orifice Float, Stainless steel Nozzle and Woven dirt Inhibitor Screen, EPDM Rubber seats and seals, End connections Flanged SABS 1123 Table 1000 or BSP Threaded

FEATURES
Uninterrupted High Volume Air/Gas discharge
Uninterrupted High Volume Air Intake
Integral Surge Alleviation Mechanism
End connections Flanged SABS 1123 Table 1000 or BSP Threaded

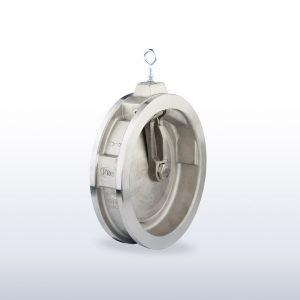

Class 150 Wafer Type Non Return Valve

DESCRIPTION
FIG 15XMZ, Class 150, Wafer Type Non Return Valve. Body, Disc, Hinge, Spring and seat in CF-8M / 316 Stainless steel.
Sizes:  50mm to 300mm
Larger sizes P.O.R.

FEATURES
• Easy to Install
• No need for expensive supports
• Can be installed in horizontal or vertical position
• Requires very low opening pressure
• 100 % Tight shut off
• PLEASE CONTACT US FOR A DATA SHEET ON BIGGER SIZES
